This is the standard anchor for ships that are likely to encounter all types of sea bottoms. It combines the advantages of dead weight for holding in ver y hard bottoms with the ability to bite and hold in mud and sand. Its features include rugged construction, simple design, with easy handling and stowing. CALL FOR ALL ORDERING NEED 754.223.2297

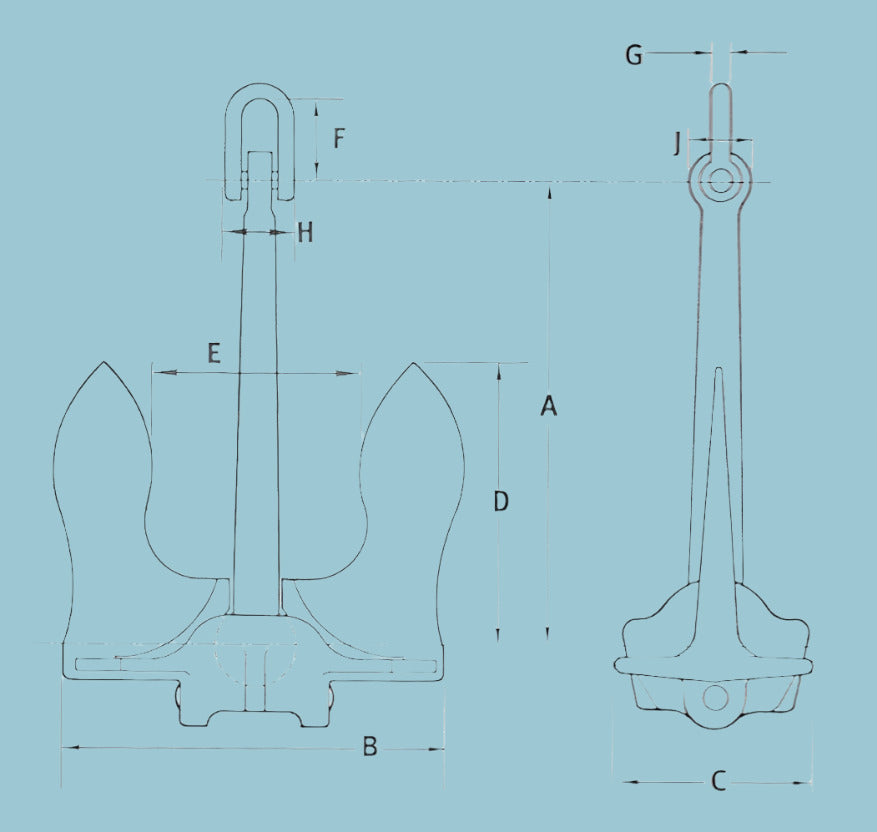

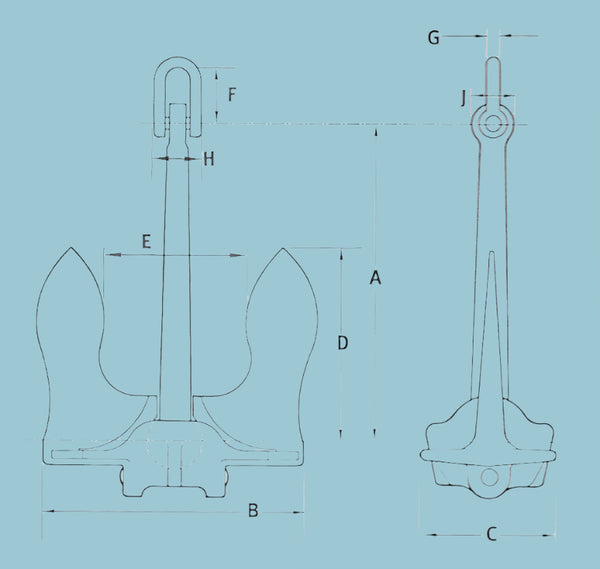

Anchor Weight (lb)
A
B
C
D
E
F
G
H
J
100
29-1/2
13-3/4
7-3/8
12-3/4
8
4
3/4
1-1/2
2-1/2
150
29-1/2
16
8-1/2
14-1/2
9
5
7/8
2-1/2
3
200
30
17-1/8
9-1/4
15-3/4
10-1/4
5
1
2-1/2
3-3/4
250
30-1/2
21
10-1/2
17
12
5
1
3-7/8
4
300
31-1/2
23-1/4
11-3/8
18
13-1/4
5-1/4
1-1/16
3-7/8
4
350
32-1/2
24-3/4
12-1/2
18-3/4
13-5/8
6
1-1/8
4-1/4
4-1/4
400
33-1/2
24-3/4
12-3/4
20-1/2
14
6
1-1/8
4-1/4
4-1/2
500
35
26-1/2
13-1/4
20-1/2
14
7
1-1/2
5-3/4
5
750
38
32
16
24
17
7
1-1/2
5-3/4
5
1,000
44
34-1/4
18
25-1/4
19-1/4
7-1/2
1-7/8
6-1/8
5-1/2
1,200
47
36
18
28
19-1/4
9-1/2
1-7/8
6-1/2
6
1,500
54
43
20
32
21-1/2
9-1/2
2
7
7
2,000
57
43
21-1/4
33-1/2
23-3/4
9-1/2
2
7
7
2,250
61
43
25-1/4
39-3/4
24-1/4
9-3/4
2-1/8
7
7
2,500
58
44-3/4
23-1/4
35-3/8
24-1/4
9-3/4
2-1/8
8-1/2
7-1/2
2,800
58
48
25
35-7/8
25-1/2
9-3/4
2-1/8
8-1/2
7-1/2
3,000
64
47
25-1/2
36
26
12
2-1/2
10
8-3/4
3,500
64
52-3/4
27-1/2
39-1/2
28-1/2
12
2-1/2
10
8-3/4
4,000
70-5/8
53-1/4
27-1/2
39-1/4
29
12
2-1/2
10
9-1/2
4,500
70-5/8
56-3/4
29
42
30
12
2-1/2
10
9-1/2
5,000
76
57-1/2
30
42
31-1/4
15
3
12
10-1/4
6,000
76
63-1/2
33-1/4
47
34-1/2
15
3
12
10-1/4
6,300
76
63-1/2
33-1/4
47
34-1/2
15
3
12
10-1/4
Do your products meet Mil-Spec?
Yes! Sacrificial anodes must be impurity-free to properly work, and all our anodes are made only from Mil-Spec alloys. Our zinc anodes are also compliant to ASTM B418 Type 1. Our Aluminum anodes conform to Mil-Spec A-24779(SH)
How much zinc do I need on my boat?
First, the larger the surface area of an anode, the higher its electrical current capacity and galvanic holding voltage. For most boats, you want your anode surface area to be sufficient to maintain all underwater metals between -900 mV and -1100 mV relative to a silver/silver-chloride reference electrode.
Second, the longevity of a sacrificial anode is a function of its weight -- the greater the weight the longer its life.
Due to differences in water salinity, temperature, stray currents, and other external influences, you only know the right weight by actual trial. Periodically inspect your zincs, and when they have corroded to under 50% their original weight they should be replaced. To lengthen the replacement interval, increase the weight of zincs used.
